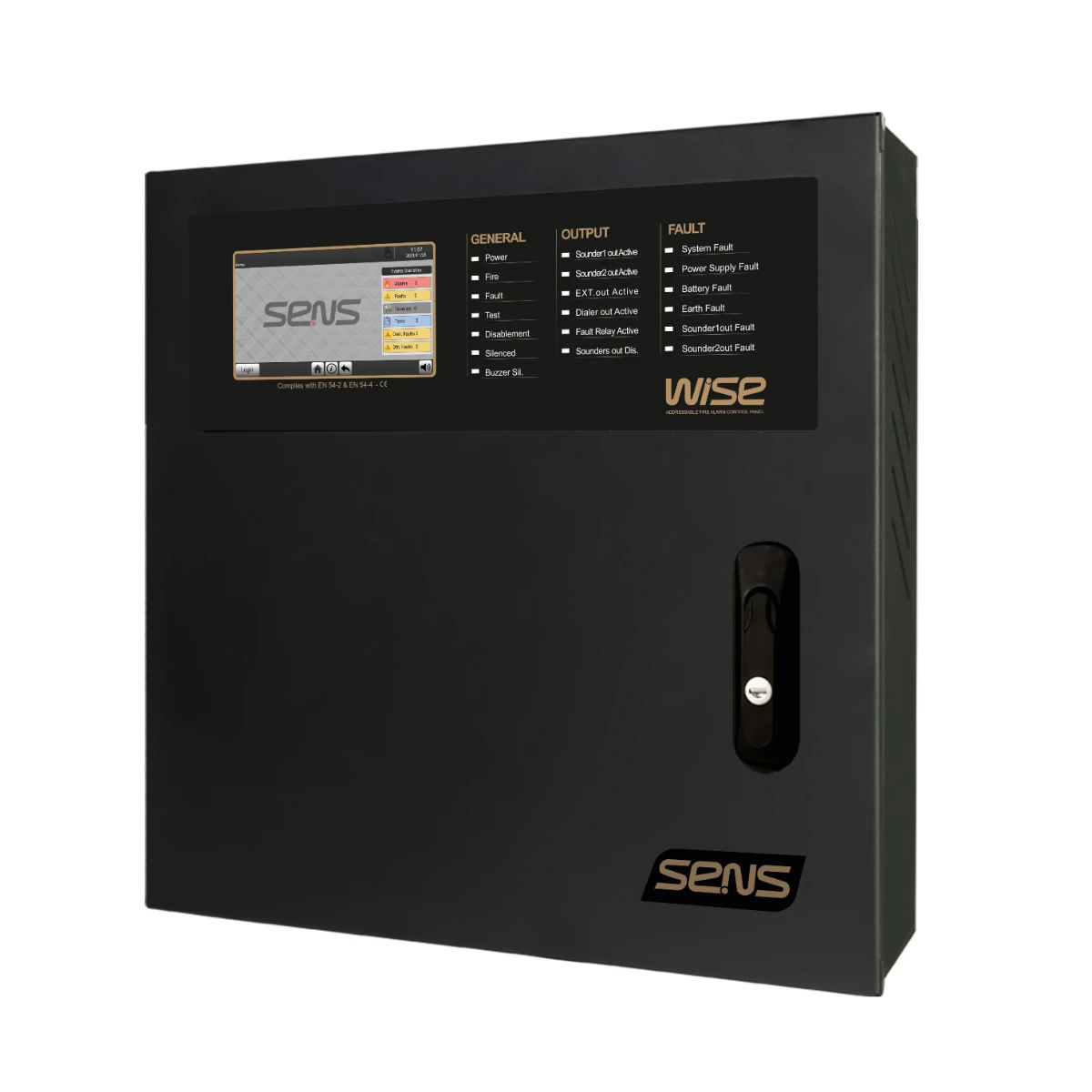

SENS WISE W1-ACP-302 adreslenebilir kontrol paneli (2 loop) sol perspektiften görünüm

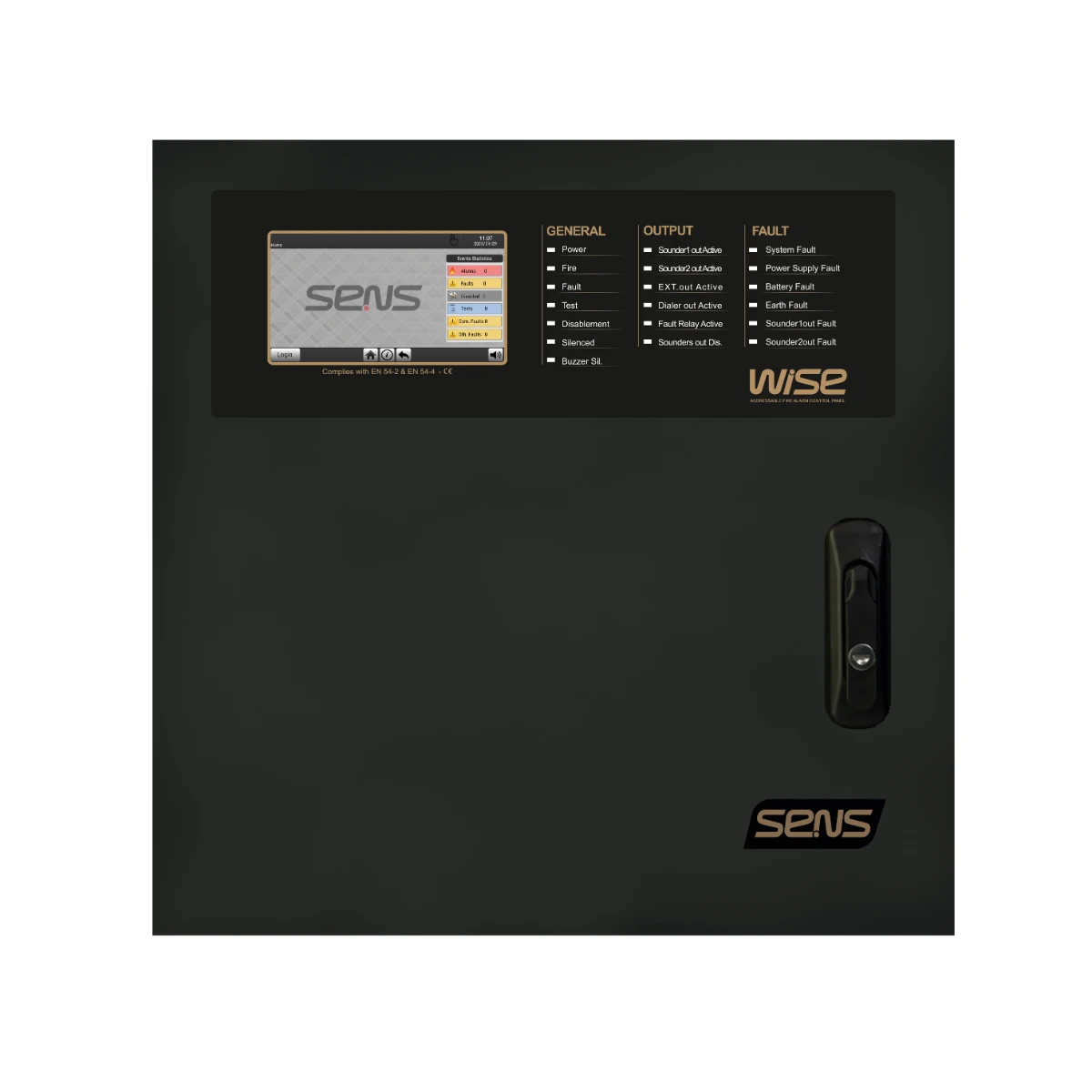

SENS WISE W1-ACP-302 adreslenebilir kontrol paneli (2 loop) ön görünüm

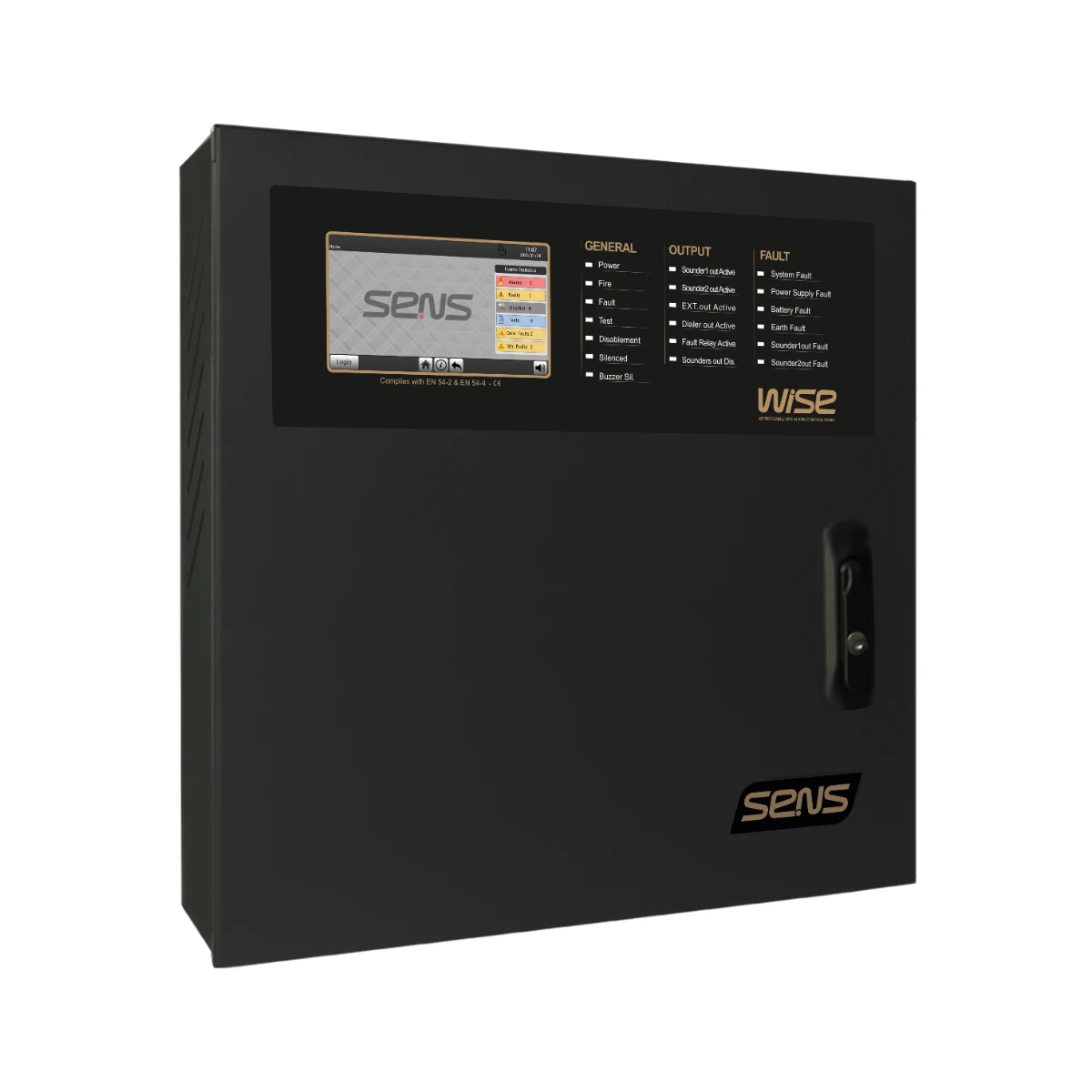

SENS WISE W1-ACP-302 adreslenebilir kontrol paneli (2 loop) sağ perspektiften görünüm
W1-ACP-302 WISE 2-Loop Addressable Control Panel
Categories: ,

The WISE 2-Loop Addressable Fire Alarm Panel is an ideal solution for small-scale projects and building safety applications. With its 2-loop capacity, it efficiently manages and monitors connected devices.
Thanks to its modular design, it can be easily adapted to meet various project requirements.
This reliable fire alarm panel offers a professional fire safety solution for small businesses and individual buildings.

Download Technical Manual
Download Product Catalog

2-Year Warranty
7/24 Technical Support
100% Customer Satisfaction

Technical Specifications
Model W1-ACP-302
Compatibility EN 54-2, 54-4
Power Supply 220 V, 60/50 Hz
Maximum Current Consumption 500 mA
Main Fuse 4 A
Battery Type 2×12 V, 7.2 Ah
Display 480×800 Graphic Display
Siren Output 2 Channels, Max 1000 mA
AUX Output 24 V, 500 mA
Number of Loops 2
Maximum Number of Loops 10
Max Devices per Loop 240
Maximum Output Zones 32
Maximum Logical Functions 32
Loop Voltage 27 V
Max Networked Panels 16
Max Repeater Panels 2
Max Fire Relay Output Current 7 A
Max Fault Relay Output Current 7 A
RJ-45 Output 1 piece
RS-485 Output 1 piece
USB 2.0 Output 1 piece
Telephone Dialer Output 1 piece
Ethernet Output 1 piece
Humidity 93% RH
Operating Temperature -10°C ~ 55°C
Enclosure Material & Color Metal / Black
Dimensions 485 × 485 × 120 mm
Weight 9.5 kg
