| Technical Specifications | |
|---|---|
| Model | F1-ASF-300 |
| Compatibility | EN 54-3, 17 |
| Power Supply | 27 V |
| Standby Consumption | 0.6 mA @ 27 V |
| Alarm State Current | 6–6.4 mA @ 27 V |
| Operating Temperature | -10 °C / 70 °C |
| Humidity | 95% (Without Condensation) |
| Tip | Tip A (For Indoor Use) |
| Ip Protection | IP21 |
| Sound Level | 80 dB/m |
| Frequencies Range | 600 Hz – 4 kHz |
| Sound Mode | Dual Tone |
| Dimensions | 75 × 100 mm |
| Weight | 150 gr |

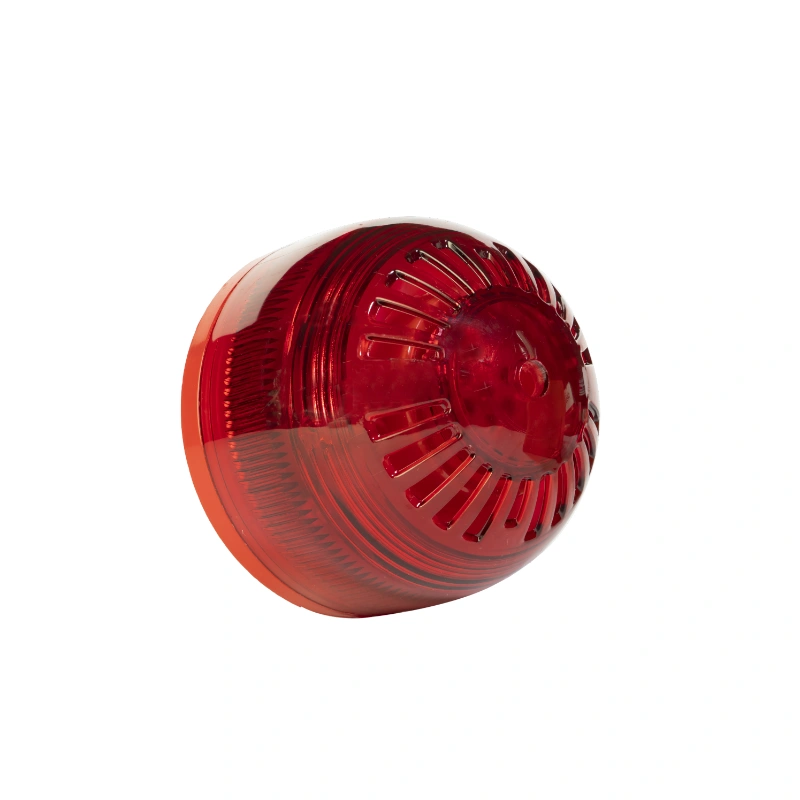

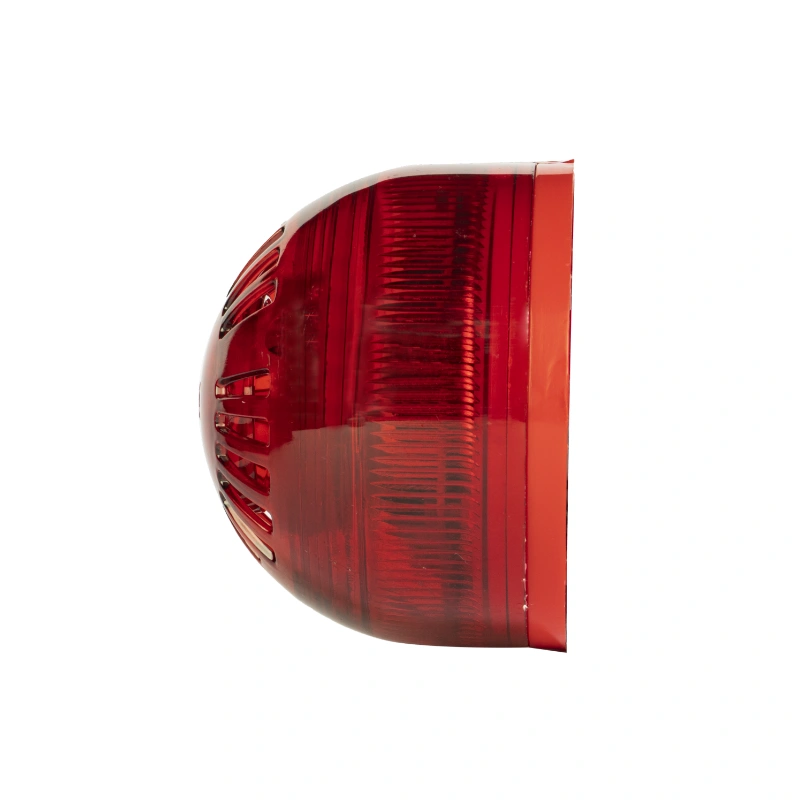

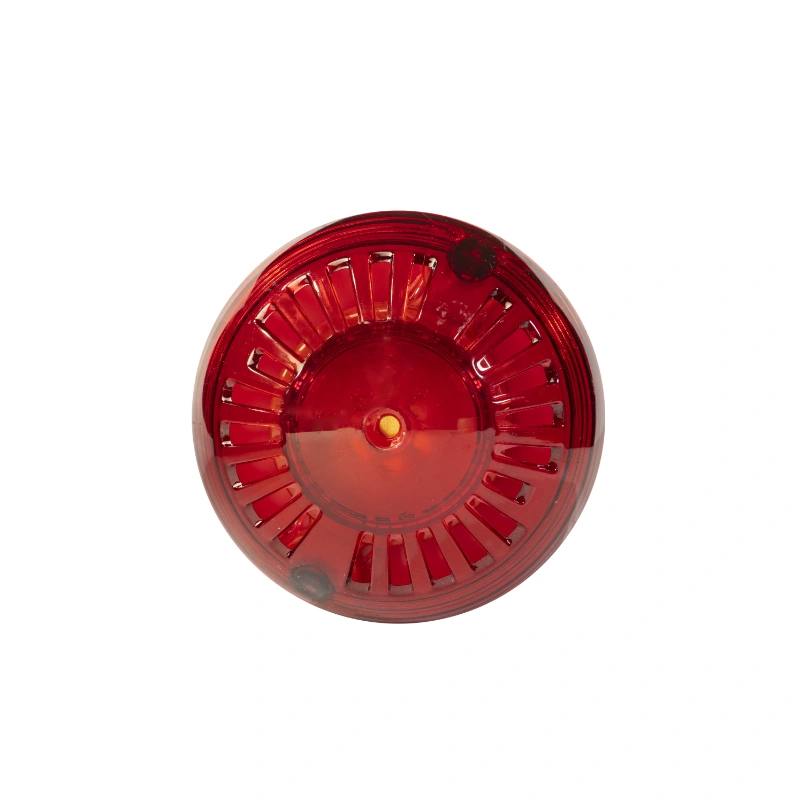

F1-ASF-300 Addressable Sounder/Flasher
Categories: Addressable Fire Alarm Systems, Sounders
The F1-ASF-300 Addressable Sounder/Flasher is a wall-mounted audio-visual alert device engineered to provide fast and dependable fire warnings. Upon fire detection, it activates both its loud sounder and bright flashing light to immediately alert occupants, helping ensure a swift and safe evacuation. Its dual-signal design enhances visibility and audibility in noisy or crowded environments, making it a vital part of any fire safety system.Seamlessly integrated with addressable fire alarm systems, the F1-ASF-300 is powered by the central control panel and communicates through the system's protocol to pinpoint its activation location. With configurable output levels and robust performance, it offers flexibility across a variety of applications. Whether in commercial complexes, residential buildings, or industrial facilities, this sounder/flasher delivers reliable and precise emergency alerts when every second matters.
2-Year Warranty
7/24 Technical Support
100% Customer Satisfaction
