| Technical Specifications | |
|---|---|
| Model | F1-ASM-300 |
| Compatibility | EN 54-3, 17 |
| Power Supply | 27 V |
| Standby Consumption | 0.6 mA @ 27 V |
| Alarm State Current | 6–6.4 mA @ 27 V |
| Operating Temperature | -10°C / 70°C |
| Humidity | 95% (Without Condensation) |
| Tip | Tip A (For Indoor Use) |
| Ip Protection | IP21 |
| Sound Level | 80 dB/m |
| Frequencies Range | 600 Hz – 4 kHz |
| Sound Mode | Dual Tone |
| Dimensions | 75×100 mm |
| Weight | 150 gr |

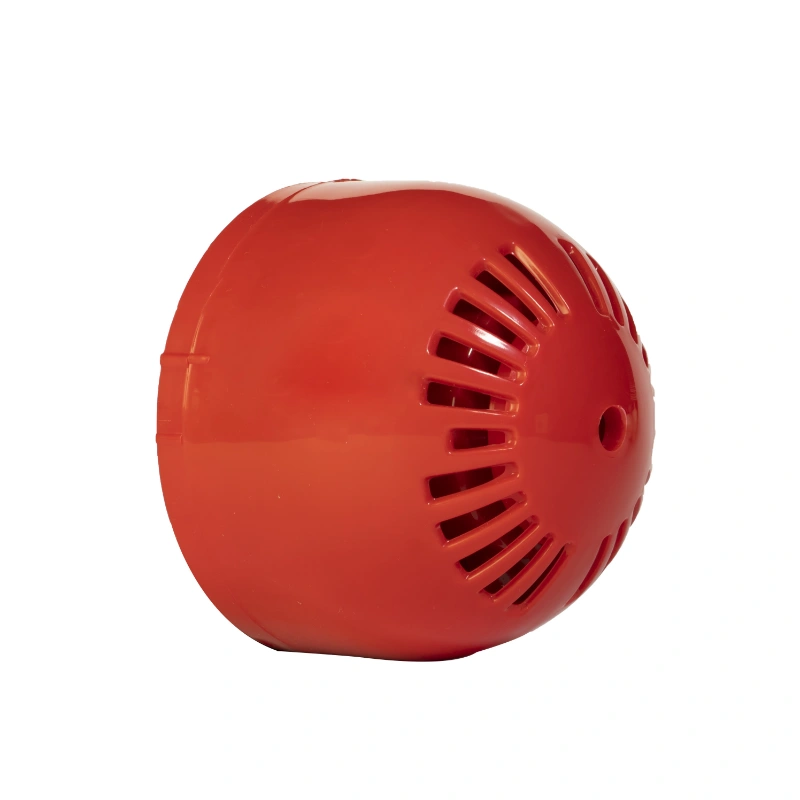

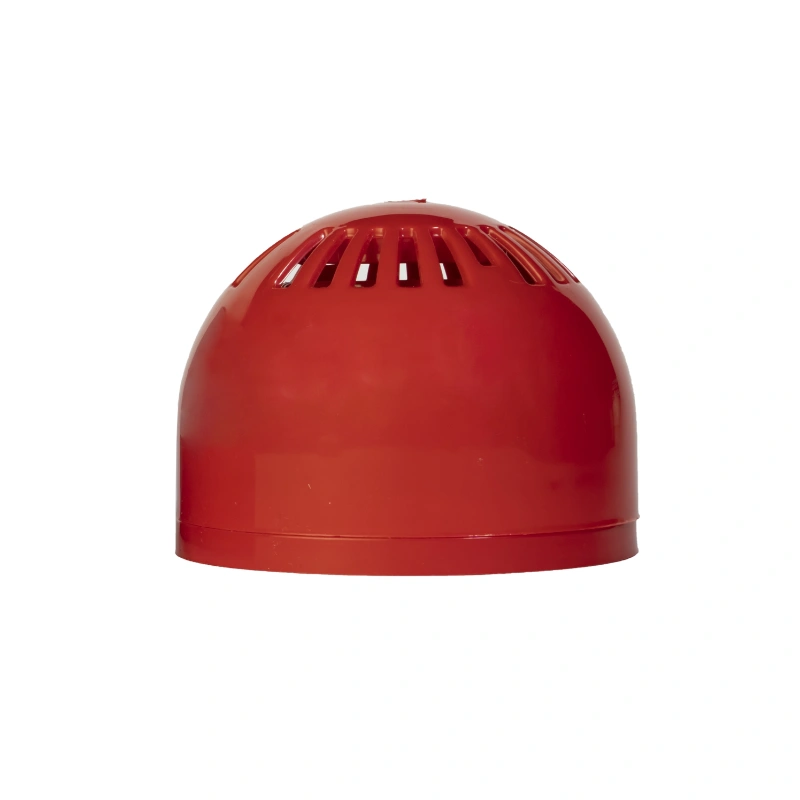

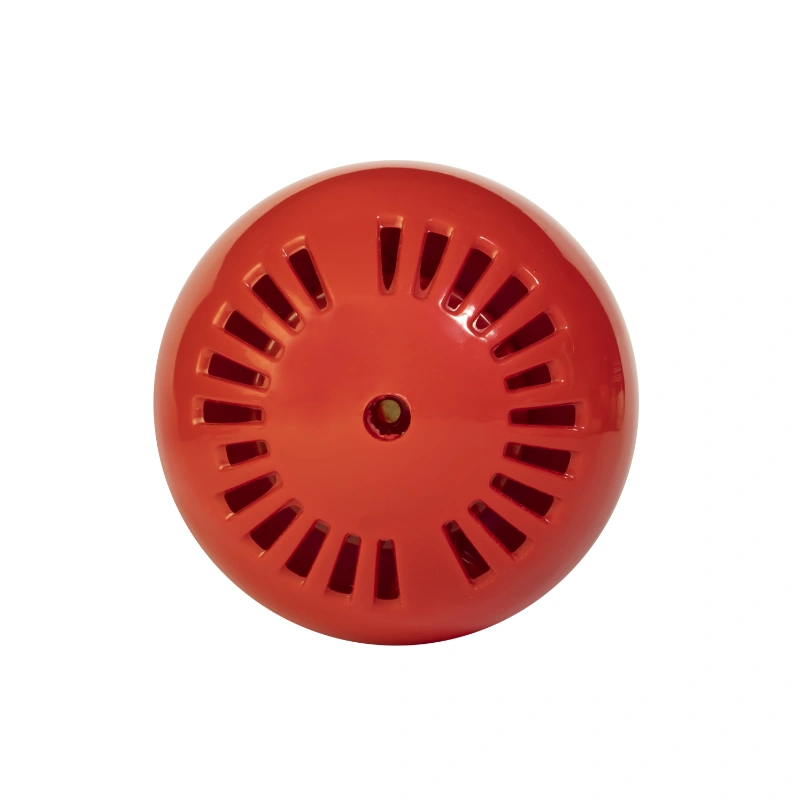

F1-ASM-300 Addressable Sounder
Categories: Addressable Fire Alarm Systems, Sounders
The F1-ASM-300 Addressable Sounder is a wall-mounted fire alarm device designed to deliver fast and effective audible alerts during fire emergencies. When a fire is detected, it emits a loud alarm sound to instantly warn building occupants and initiate evacuation procedures.
Powered by the central fire alarm control panel, the F1-ASM-300 integrates seamlessly into addressable fire alarm systems. Manufactured in compliance with EN 54-3and EN 54-17 standards, it delivers high-performance alerts with an 80 dB sound level and dual-tone alarm mode, making it an ideal choice for indoor environments where quick and reliable audible warning is essential.
2-Year Warranty
7/24 Technical Support
100% Customer Satisfaction
